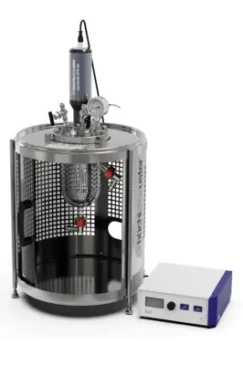

Uniclave Glass and Stainless Steel Pressure Vessels

• Lab Scale Pressure Reactor for glass and stainless steel vessels from 0.5 to 1.0 litre

A larger ‘version’ of the Picoclave enabling the use of larger glass or stainless steel vessels up to 1.0 L in volume. The frame includes a sliding polycarbonate safety screen and supports the 7-port head unit. A range of vessels can be installed whether glass, glass and steel or all-steel and with and without bottom outlet valve. Stirring is enabled via the Cyclone 075 combined magnetic coupling and stirrer motor. It is supplied ready to use complete with pressure gauge, rupture disc, Pt100 temperature probe and 2 needle valves. Stainless steel parts can also be made from a range of alternative metals.

• Rated Pressure: up to 60 bar in stainless steel, 12 bar in glass
• Rated Temperature: -20….250°C
• Vessels available:  500ml, 1.0 l
• Safety: Rupture disc, manufactured to PED, CE marked, safety screen
• Temperature control: Jacketed vessels can be supplied with integral electrical heating or for connection to an external heater/chiller (available from us)

Please contact us to discuss your requirements as specials are always possible.
