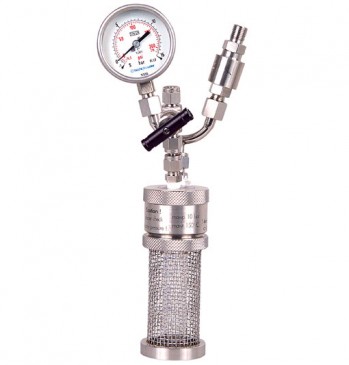

Tinyclave Steel Pressure Vessel

• Our smallest and simplest pressure system for reacting just a few mls.

Our ‘entry-level’ system which is made in Switzerland to the same exacting safety and manufacturing standards that apply to our largest reactors. Includes a choice of two simple glass vessels and stainless steel 2-port head unit which are very simply and quickly screwed together. It is supplied ready to use with pressure gauge, rupture disc and needle valve. Stainless steel parts can also be made from a range of alternative metals.

• Rated Pressure: 10 bar
• Rated Temperature: -20……200°C (option for 300°C)
• Vessels available: 10ml, 25ml. NEW! – PTFE liners available
• Safety: Rupture disc, manufactured to PED, CE marked, safety screen
