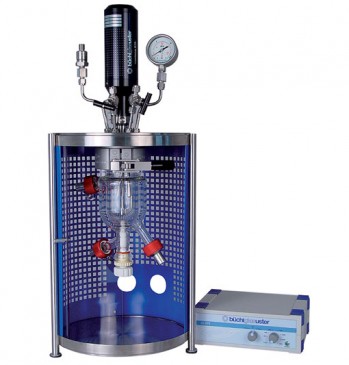

Picoclave – Jacketed Glass Pressure Vessel

• Stirred and jacketed glass and metal system suitable for the bench-top fume cupboard.

Similar to the Miniclave Drive but with the additional option of using jacketed glass pressure vessels which is made possible with the support frame with a sliding polycarbonate safety screen. The vessels and stainless steel, 6-port, head unit are quickly and easily clamped together with our fast-action-closure and held within a sturdy steel frame. One of a range of inter-changeable glass and steel vessels can be fitted. Stirring is enabled via the Cyclone 075 combined magnetic coupling and stirrer motor. It is supplied ready to use complete with pressure gauge, rupture disc, Pt100 temperature probe and 2 needle valves. Metal parts can also be made from a range of alternative metals such as Hastelloy, Titanium, etc

• Rated Pressure: up to 1500 bar or 10 bar in glass
• Rated Temperature: -20….300°C
• Vessels available: 100ml, 200ml, 250ml, 300ml
• Safety: Rupture disc, manufactured to PED, CE marked, safety screen
• Temperature control: Jacketed vessels for connection to an external heater/chiller (available from us)

Please contact us to discuss your requirements as specials are always possible.
