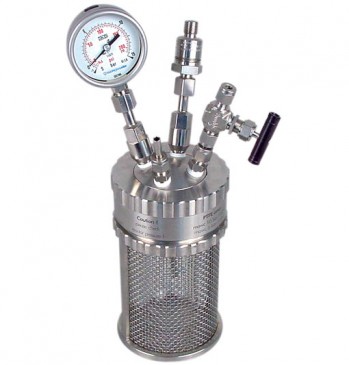

Miniclave Steel Pressure Vessel

• Small stainless steel and glass reactor for higher pressure and temperature.

Designed to be used with an oil bath and hotplate stirrer should stirring and temperature control be needed. Consisting of a glass vessel and stainless steel 4-port lid. It has a simple sealing mechanism and it is perfect for small scale reactions where higher temperatures and pressures are needed. Different sized vessels are interchangeable with the same head unit. It is supplied ready to use with pressure gauge, rupture disc, Pt100 temperature probe and needle valve. Stainless steel parts can also be made from a range of alternative metals.

• Rated Pressure: 10 bar
• Rated Temperature: -20…..200°C (option for 300°C)
• Vessels available: 100ml, 200ml, 250ml, 300ml. NEW! – PTFE liners available
• Safety: Rupture disc, manufactured to PED, CE marked, safety screen

Please contact us to discuss your requirements as specials are always possible.
