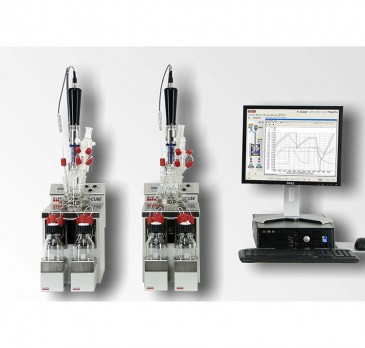

FlexyCube
The FlexyCube from Systag is a modular system with full automation ideally suited for Design of Experiments (DoE). One PC controls up to 6 reactors which can be used in parallel or individually. Includes all the necessary tools and functions to enable the User to simulate complex processes.
Concept
- Up to 6 steel or glass reactors can be controlled from a single PC
- Parallel (DoE) or individual operation
- Highly compact design
- Manual operation or recipe control, manual intervention possible at all times
- Jacketed reactor for full temperature control
Flexibility through options
- pH measurement and control
- 70, 100, 250 or 400 ml reactors
- Pressure glass reactor or steel (S.S./Hastelloy)
- Various types of stirrers available
- Automatic distillation with boiling point detection
- Isothermal heat flow calorimetry, online analyses
Standard functions
- Independent control of all steel or glass reactors
- Reactor or jacket-based temperature control
- Adjustable stirrer speed and torque measurement
- Data capture and automatic laboratory report
- Alarm/event file
- Global support through remote access via Internet
Operating range
- Temperature range from -80°C to +280°C
- Volume range from 10 to 400 ml
- Pressure range from 3mbar to 1.6bar (standard glass),
optionally < 1mbar to 100bar or more (SS316 reactor)
