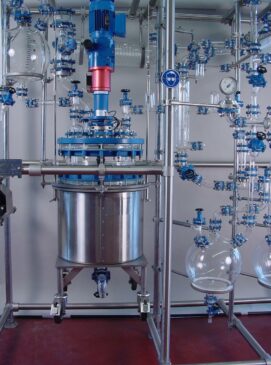

CR60-K Glass Lined Steel and Glass Reactor

The CR60-K is a glass lined steel and glass reactor 60 litres, with distillation overhead.

Operating temperature/°C:

 -60…+200

Operating pressure jacket/bar:

 -1…+10

Operating pressure vessel/bar:

 -1…+0.5

Nominal volume/fill volume/litres:

 60/69

Jacket volume/litres:

 11

Heat transfer surface/m²:

 0.45

Minimum stirred volume/litres:

 2

Minimum temperature measurement/litres:

 3

Overall dimensions Height/mm:

 2,250

Overall dimensions Width/mm:

 2,200

Overall dimensions Depth/mm:

 1,120

Primary Condenser Heat Exchange Area/m²:

 1 x 1.3

Secondary Condenser Heat Exchange Area/m²:

 1.3

Feed Vessels/litres:

20

Receivers/litres:

 2×20

Phase Separator/litres:

 1
