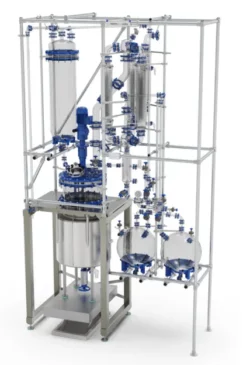

CR250 Glass Lined Steel and Glass Reactor

The CR250 is a glass lined steel and glass reactor 250 litres, with distillation overhead.

Operating temperature/°C:

 -60…+200

Operating pressure jacket/bar:

 -1…+10

Operating pressure vessel/bar:

 -1…+0.3

Nominal volume/fill volume/litres:

 250/330

Jacket volume/litres:

 30

Heat transfer surface/m²:

 1.35

Minimum stirred volume/litres:

 5

Minimum temperature measurement/litres:

 45

Overall dimensions Height/mm:

 4,500

Overall dimensions Width/mm:

 2,650

Overall dimensions Depth/mm:

 1,300

Primary Condenser Heat Exchange Area/m²:

 3 x 1.6

Secondary Condenser Heat Exchange Area/m²:

 1.3

Feed Vessels/litres:

 150

Receivers/litres:

 2×100

Phase Separator/litres:

 3
