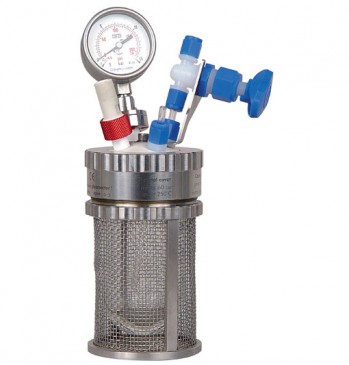

Miniclave – Small Scale Glass Pressure Vessel

• Easy to use reactor with product-wetted parts made from inert materials.

Designed to be used with an oil bath and hotplate stirrer should stirring and temperature control be needed. Consisting of a glass pressure vessel, PTFE lid and a simple sealing mechanism it is perfect for small scale reactions where contact with metal is an issue. Different sized vessels are interchangeable with the same head unit. Supplied ready to use complete with pressure gauge, rupture disc, thermometer sleeve and PFA valve.

• Rated Pressure: 10 bar
• Rated Temperature: 150°C
• Vessels available: 100ml, 200ml, 250ml, 300ml. PTFE liners now available
• Safety: Rupture disc, manufactured to PED, CE marked, safety screen
